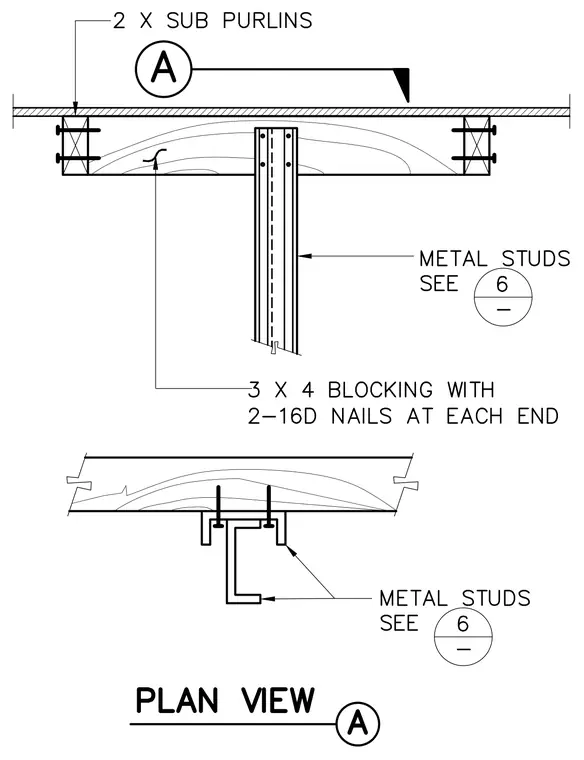

A metal stud partition connects overhead to two by sub purlins and three by four wood blocking secured with two 16d nails at each end. Metal studs are sized per plan and attach to the blocking assembly. A plan view shows the stud alignment and fastening configuration.
