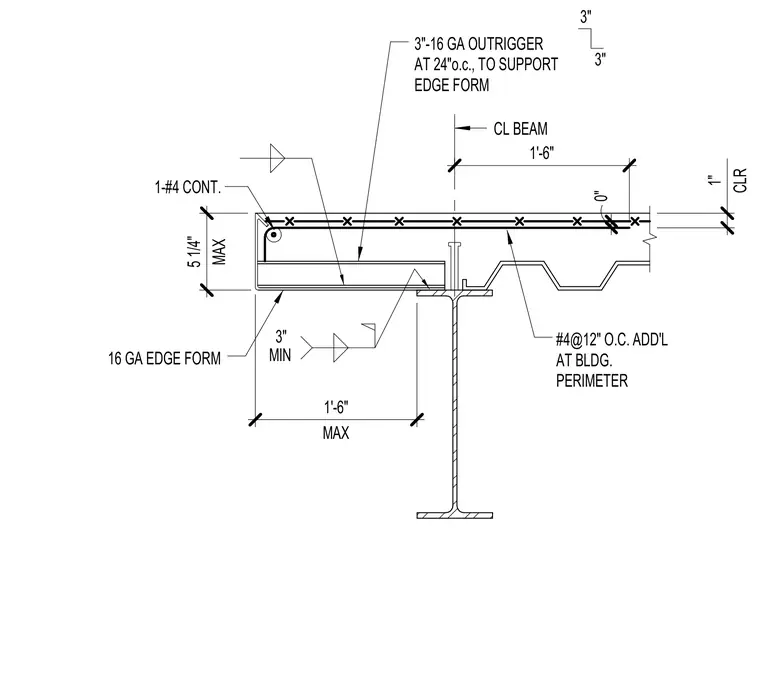

A concrete slab with a metal deck bears on a structural steel beam at the building perimeter. A sixteen gauge edge form is supported by three-inch sixteen gauge outriggers spaced at twenty-four inches on center and welded to the supporting steel member. Reinforcing includes one number four continuous bar at the slab edge and number four bars at twelve inches on center added at the building perimeter.
1'-6" 1'-6" MAX 1" CLR 5 1/4" MAX 3" MIN 1-#4 CONT. CL BEAM 3" 3" 0" #4@12" O.C. ADD'L AT BLDG. PERIMETER 16 GA EDGE FORM 3"-16 GA OUTRIGGER AT 24"o.c., TO SUPPORT EDGE FORM
