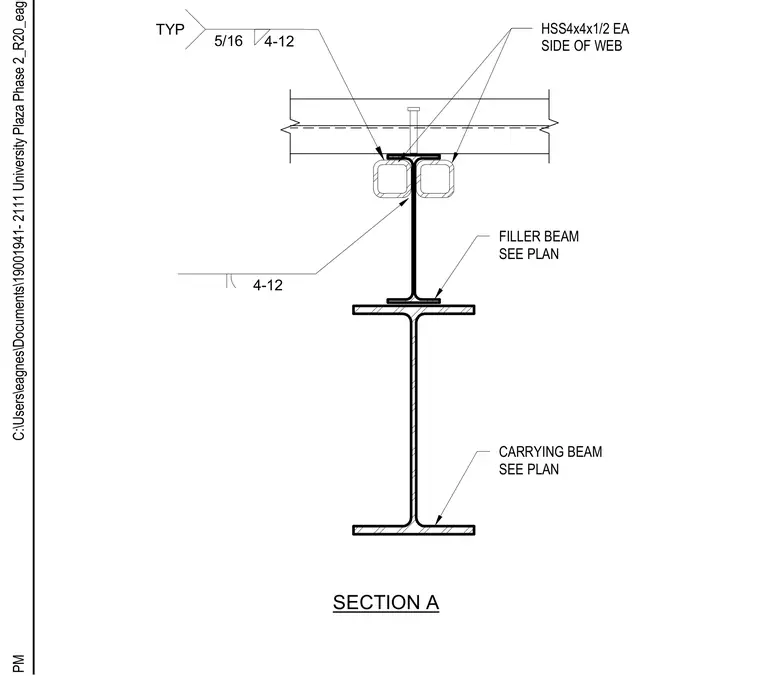

This connection assembly features HSS 4x4x1/2 hollow structural sections positioned on each side of the filler beam web. The filler beam is supported by a carrying wide flange beam sized per plan. Five-sixteenths inch typical fillet welds connect the structural members together.
HSS4x4x1/2 EA SIDE OF WEB FILLER BEAM SEE PLAN CARRYING BEAM SEE PLAN 4-12 SECTION A 5/16 TYP 4-12 C:\Users\eagnes\Documents\19001941- 2111 University Plaza Phase 2_R20_eagnes.rvt
