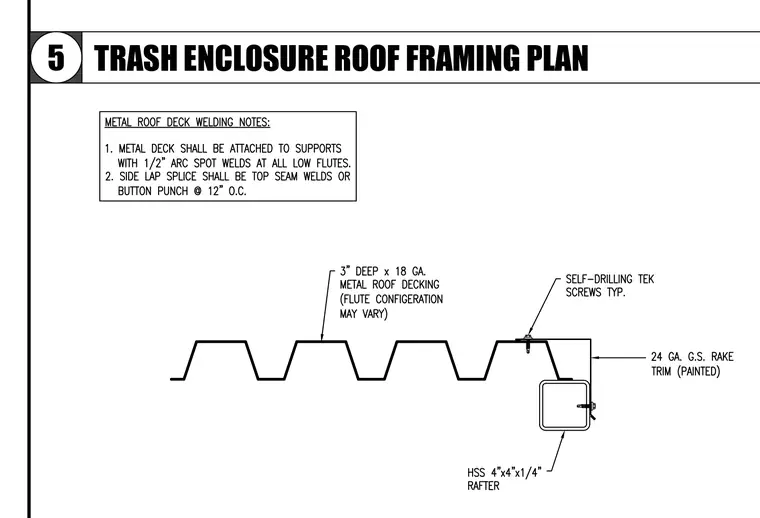

Metal roof decking consists of three-inch deep by 18-gauge metal roof decking bearing on a hollow structural section four-by-four-by-one-quarter-inch rafter. Self-drilling Tek screws secure twenty-four gauge galvanized steel painted rake trim to the deck and framing.
