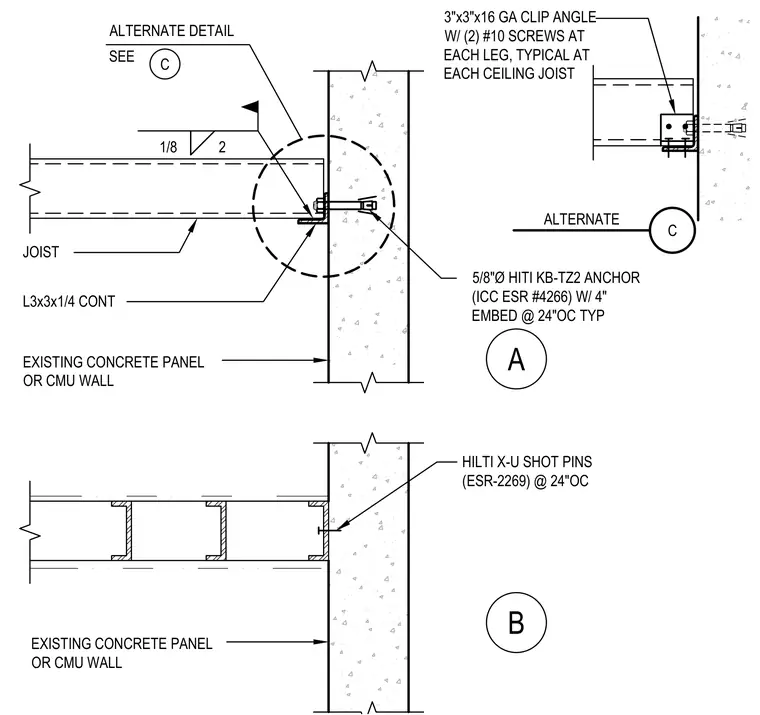

A ceiling joist framing connection to an existing concrete panel or masonry wall utilizes a continuous L3x3x1/4 angle attached to the wall with 5/8-inch diameter Hilti KB-TZ2 anchors spaced at twenty-four inches on center with four-inch embedment. The joist connects to the angle with a 1/8-inch fillet weld and a two-inch weld length, supported by a 3x3 sixteen-gauge clip angle fastened with two number-ten screws at each leg typically at each ceiling joist. An alternate detail employs Hilti X-U shot pins spaced at twenty-four inches on center to fasten the joist framing directly to the wall.
C ALTERNATE C A B 1/8 2 3"x3"x16 GA CLIP ANGLE W/ (2) #10 SCREWS AT EACH LEG, TYPICAL AT EACH CEILING JOIST ALTERNATE DETAIL SEE JOIST L3x3x1/4 CONT EXISTING CONCRETE PANEL OR CMU WALL HILTI X-U SHOT PINS (ESR-2269) @ 24"OC EXISTING CONCRETE PANEL OR CMU WALL 5/8"Ø HITI KB-TZ2 ANCHOR (ICC ESR #4266) W/ 4" EMBED @ 24"OC TYP
