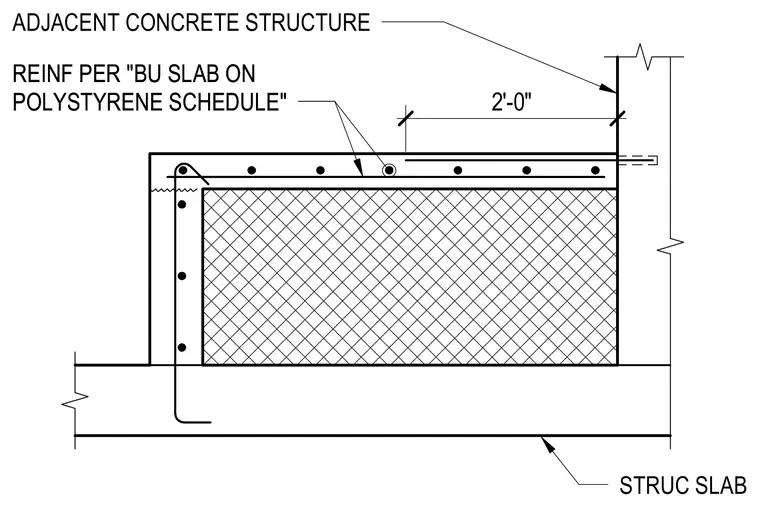

A build-up structural slab is cast over a polystyrene form and tied into an adjacent concrete structure with a two-foot offset. Reinforcement is provided per the build-up slab on polystyrene schedule. The structural slab supports the assembly from below.
STRUC SLAB REINF PER "BU SLAB ON POLYSTYRENE SCHEDULE" REINF PER "BU SLAB ON POLYSTYRENE SCHEDULE" 2'-0" ADJACENT CONCRETE STRUCTURE
