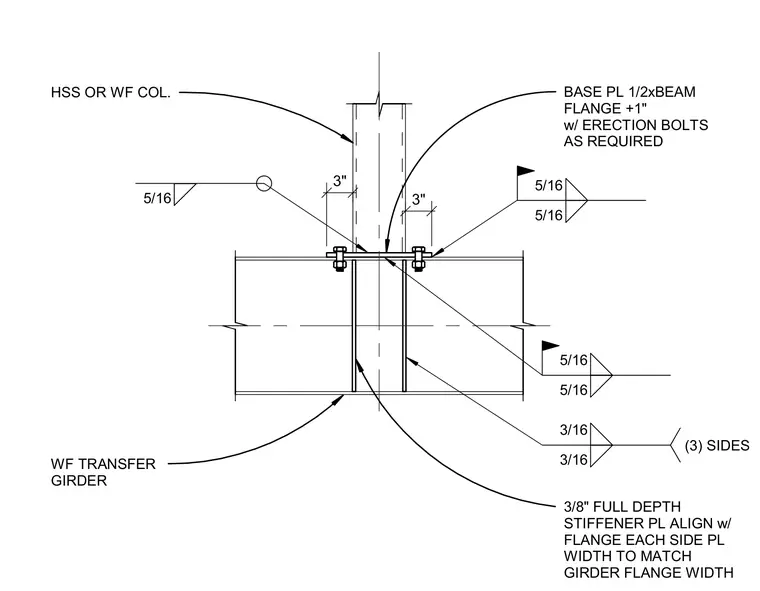

An upper hollow structural section or wide flange column bears onto a wide flange transfer girder via a one-half-inch-thick base plate sized one inch larger than the beam flange, secured with erection bolts as required. A three-eighths-inch full-depth stiffener plate aligns with the flange on each side, with plate width matching the girder flange width. The connection is welded with five-sixteenth-inch and three-sixteenth-inch fillet welds on three sides.
BASE PL 1/2xBEAM FLANGE +1" w/ ERECTION BOLTS AS REQUIRED HSS OR WF COL. WF TRANSFER GIRDER 3/8" FULL DEPTH STIFFENER PL ALIGN w/ FLANGE EACH SIDE PL WIDTH TO MATCH GIRDER FLANGE WIDTH 3/16 3/16 (3) SIDES 5/16 5/16 5/16 5/16 5/16 3" 3"
