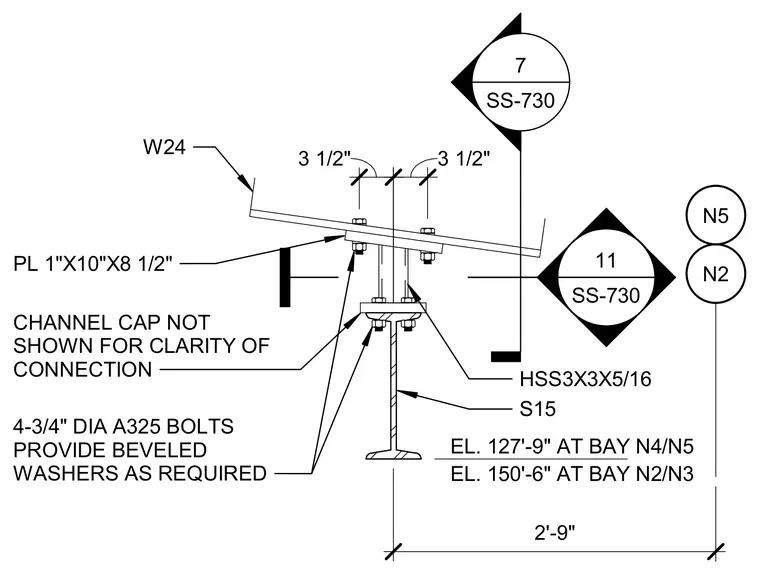

A W24 wide-flange beam connects to an S15 structural shape supported by an HSS3x3x5/16 hollow structural section column. A 1-inch thick by 10-inch wide by 8-1/2-inch long plate sits beneath the beam flange. Four 3/4-inch diameter ASTM A325 bolts secure the assembly with beveled washers provided as required. The channel cap is omitted for clarity of the connection.
N2 N5 2'-9" 3 1/2" 3 1/2" W24 HSS3X3X5/16 S15 EL. 127'-9" AT BAY N4/N5 EL. 150'-6" AT BAY N2/N3 4-3/4" DIA A325 BOLTS PROVIDE BEVELED WASHERS AS REQUIRED PL 1"X10"X8 1/2" CHANNEL CAP NOT SHOWN FOR CLARITY OF CONNECTION 7 SS-730 11 SS-730 11 SS-730
