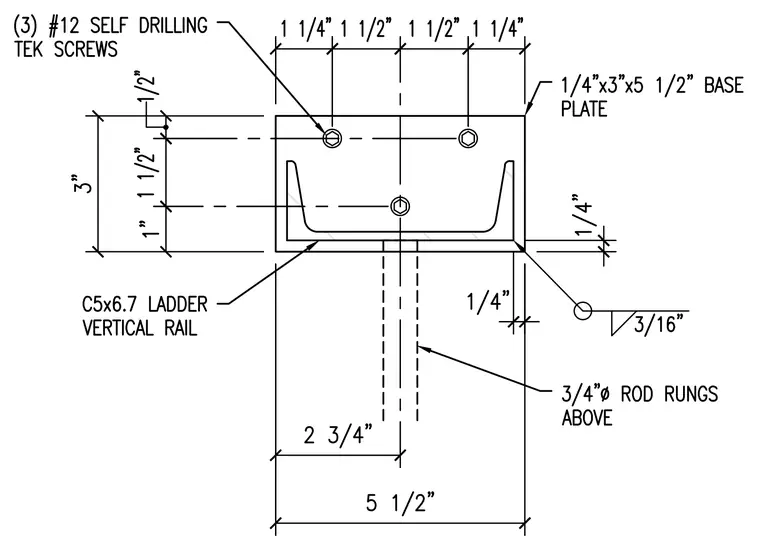

A C5x6.7 ladder vertical rail connects to a one-quarter-inch by three-inch by five-and-a-half-inch base plate using a three-sixteenth-inch fillet weld. Three number twelve self-drilling Tek screws fasten the assembly with specific edge distances and spacing dimensions. Three-quarter-inch diameter rod rungs extend upward from the base connection.
