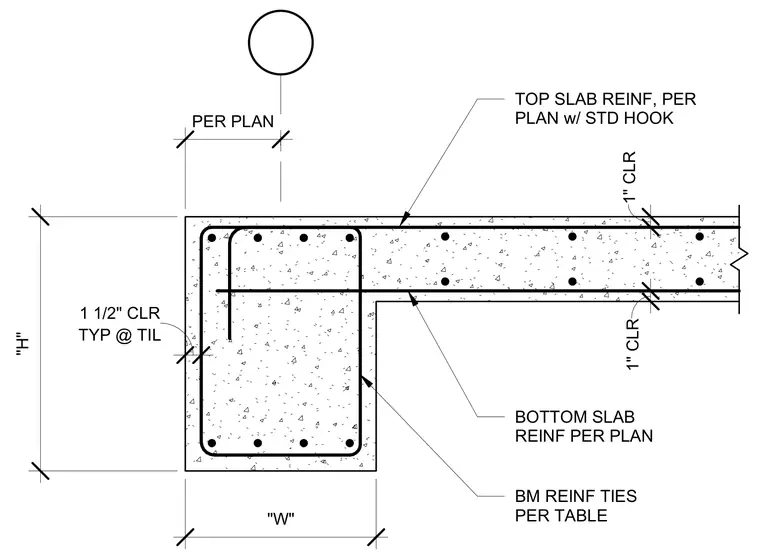

A reinforced concrete curb forms the edge of a concrete slab, featuring top slab reinforcement with standard hooks and bottom slab reinforcement sized per plan. The curb includes beam reinforcing ties spaced according to the structural table with a one and a half inch typical clearance. One inch clear cover is maintained for the slab reinforcement.
PER PLAN "H" "W" TOP SLAB REINF, PER PLAN w/ STD HOOK 1" CLR 1" CLR BOTTOM SLAB REINF PER PLAN BM REINF TIES PER TABLE TYP @ TIL 1 1/2" CLR
