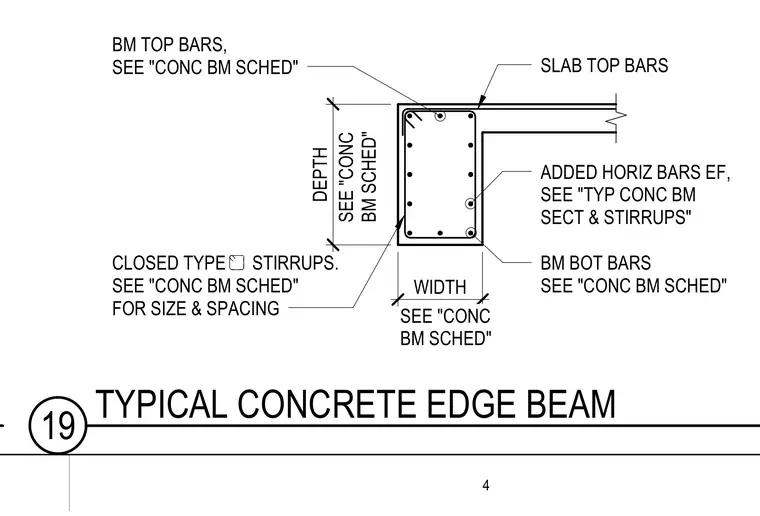

A typical cast-in-place concrete edge beam is monolithically poured with an adjacent concrete floor slab. The assembly incorporates beam top bars and slab top bars detailed per the concrete beam schedule, along with beam bottom bars similarly scheduled for size and placement. Closed-type stirrups provide shear reinforcement around the perimeter at spacings defined in the structural schedules. Added horizontal bars are provided on each face as specified in typical concrete beam sections.
30" 18" SLAB TOP BARS BM TOP BARS, SEE "CONC BM SCHED" CLOSED TYPE STIRRUPS. SEE "CONC BM SCHED" FOR SIZE & SPACING BM BOT BARS SEE "CONC BM SCHED" ADDED HORIZ BARS EF, SEE "TYP CONC BM SECT & STIRRUPS" SEE "CONC BM SCHED" SEE "CONC BM SCHED" DEPTH WIDTH 4 19 TYPICAL CONCRETE EDGE BEAM
