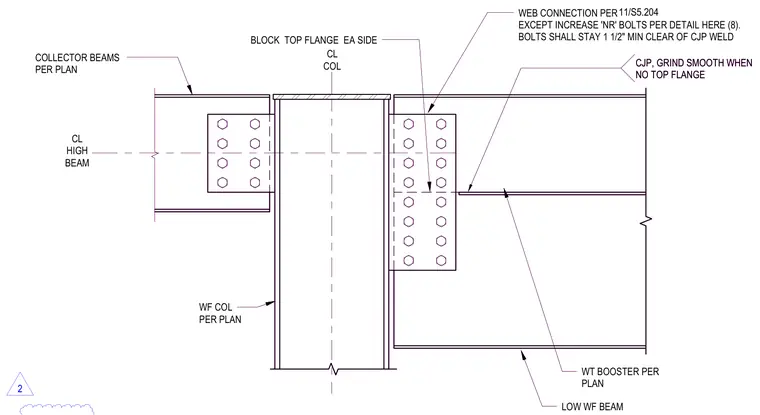

High and low wide flange beams frame into a wide flange column per plan, featuring a stepped profile with collector beams. The web connections utilize eight bolts on each side, increased per detail requirements, and are positioned to maintain a one-and-a-half-inch minimum clearance from the complete joint penetration weld. The top flange of the column is blocked on each side. A WT booster is provided per plan at the low wide flange beam. A complete joint penetration weld is specified and ground smooth where there is no top flange.
WF COL PER PLAN BLOCK TOP FLANGE EA SIDE WEB CONNECTION PER EXCEPT INCREASE 'NR' BOLTS PER DETAIL HERE (8). BOLTS SHALL STAY 1 1/2" MIN CLEAR OF CJP WELD 11/S5.204 CJP, GRIND SMOOTH WHEN NO TOP FLANGE COLLECTOR BEAMS PER PLAN CL COL CL HIGH BEAM WT BOOSTER PER PLAN LOW WF BEAM WF COL PER PLAN BLOCK TOP FLANGE EA SIDE WEB CONNECTION PER EXCEPT INCREASE 'NR' BOLTS PER DETAIL HERE (8). BOLTS SHALL STAY 1 1/2" MIN CLEAR OF CJP WELD 11/S5.204 CJP, GRIND SMOOTH WHEN NO TOP FLANGE COLLECTOR BEAMS PER PLAN CL COL CL HIGH BEAM WT BOOSTER PER PLAN LOW WF BEAM 2
