Structural · S-MW38C

Cold-Rolled Channel Bridging and Boxed Post Framing Detail

Materials

Elements

About this detail

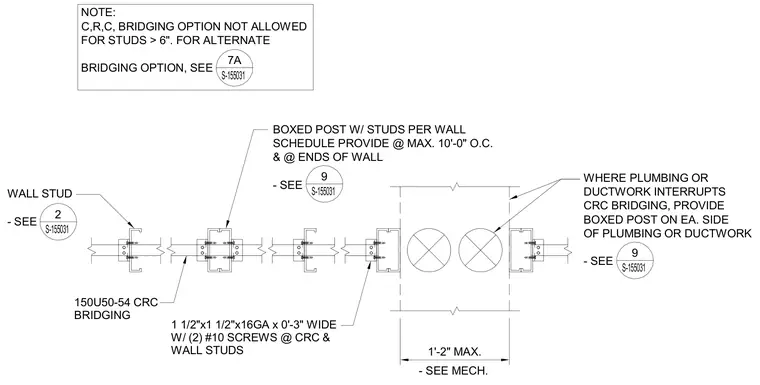

Cold-rolled channel bridging runs continuously across cold-formed steel wall studs, secured with custom-cut bridging clips and self-tapping screws at each stud intersection. Boxed posts are positioned at a maximum spacing of ten feet on center, at wall ends, and on both sides of any plumbing or ductwork penetrations up to one foot two inches wide. Cold-rolled channel bridging is restricted from studs exceeding six inches in depth, requiring alternate bridging configurations per engineering notes. Wall studs and boxed posts are sized in accordance with the structural wall schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
