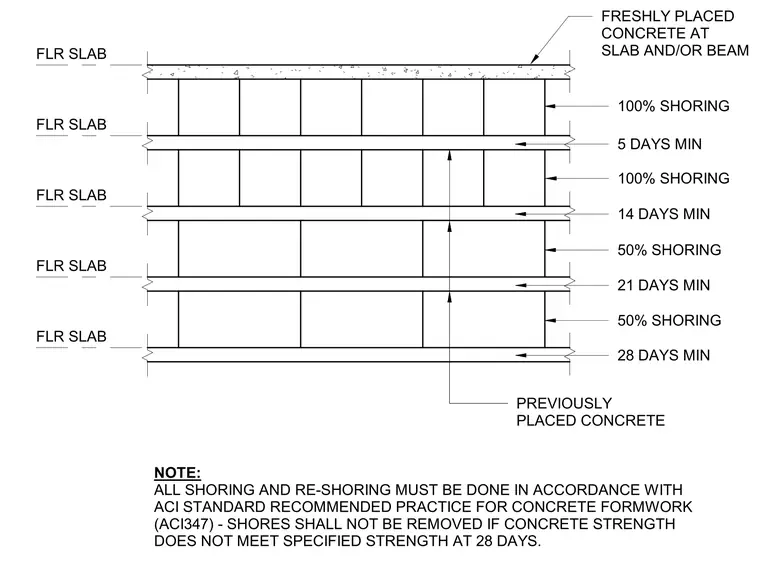

Multi-level concrete floor slabs and beams are supported by vertical shoring and reshoring systems across multiple stories. Freshly placed concrete at the top level requires one hundred percent shoring for a minimum of five days. Successive lower levels indicate decreasing shoring percentages down to fifty percent at fourteen and twenty-one days, up to twenty-eight days minimum. All shoring and reshoring operations must comply with ACI Standard 347, prohibiting shore removal if concrete has not attained specified twenty-eight-day strength.
5 DAYS MIN 50% SHORING 28 DAYS MIN 21 DAYS MIN 50% SHORING 14 DAYS MIN 100% SHORING 100% SHORING FRESHLY PLACED CONCRETE AT SLAB AND/OR BEAM PREVIOUSLY PLACED CONCRETE NOTE: ALL SHORING AND RE-SHORING MUST BE DONE IN ACCORDANCE WITH ACI STANDARD RECOMMENDED PRACTICE FOR CONCRETE FORMWORK (ACI347) - SHORES SHALL NOT BE REMOVED IF CONCRETE STRENGTH DOES NOT MEET SPECIFIED STRENGTH AT 28 DAYS. FLR SLAB FLR SLAB FLR SLAB FLR SLAB FLR SLAB
