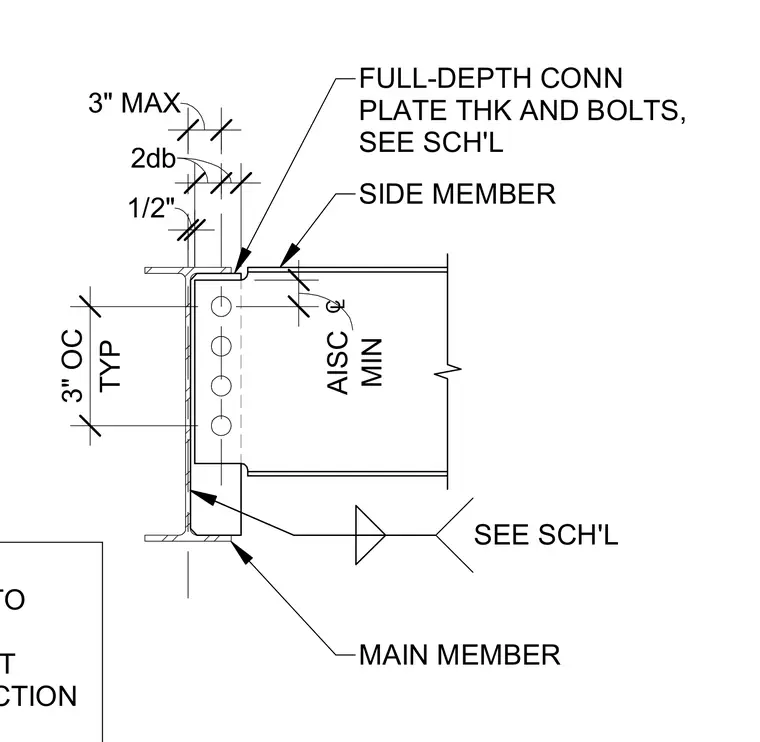

The side member beam attaches to the main member web using a full-depth connection plate sized per schedule. The supported beam flanges are coped as required, maintaining standard minimum edge distances and a three-inch maximum clearance. Standard round holes are provided, except at concrete embeds where connection plates and bolts are sized per schedule. A one-half-inch clearance and three-inch typical on-center bolt spacing are maintained per AISC minimum requirements.
1. COPE SUPPORTED BEAM FLANGES AS REQ'D TO 2. PROVIDE STANDARD ROUND HOLES EXCEPT AT CONCRETE EMBEDS, PROVIDE SHEAR CONNECTION TYP 3" OC FULL-DEPTH CONN PLATE THK AND BOLTS, SEE SCH'L SEE SCH'L 3" MAX C L MIN AISC 2db 2db SIDE MEMBER MAIN MEMBER 1/2"
