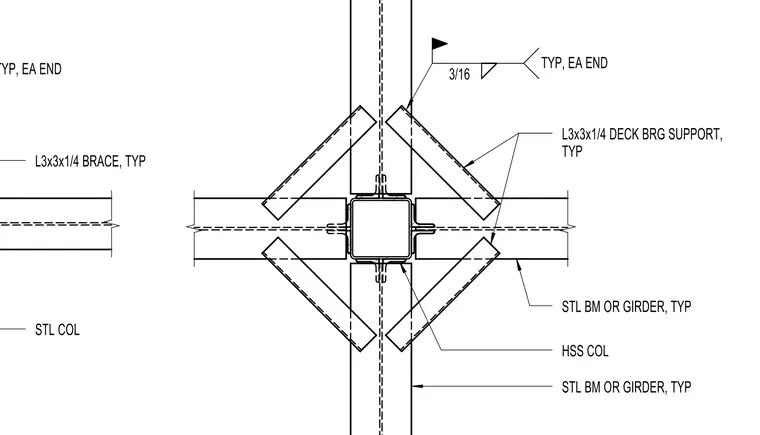

A hollow structural section steel column framing connection with intersecting steel beams or girders and diagonal angle braces. Three-inch by three-inch by quarter-inch steel angles function as typical braces and deck bearing supports at each end. A three-sixteenth-inch fillet weld connects the members typically at each end. The assembly ties structural steel beams or girders into a central hollow structural section column with welded angle bracing.
L3x3x1/4 BRACE, TYP STL COL STL BM OR GIRDER, TYP HSS COL STL BM OR GIRDER, TYP L3x3x1/4 DECK BRG SUPPORT, TYP 3/16 TYP, EA END TYP, EA END
