Structural · S-MTYY7

Typical Corner Wall Reinforcing at Concrete Walls

Materials

Elements

About this detail

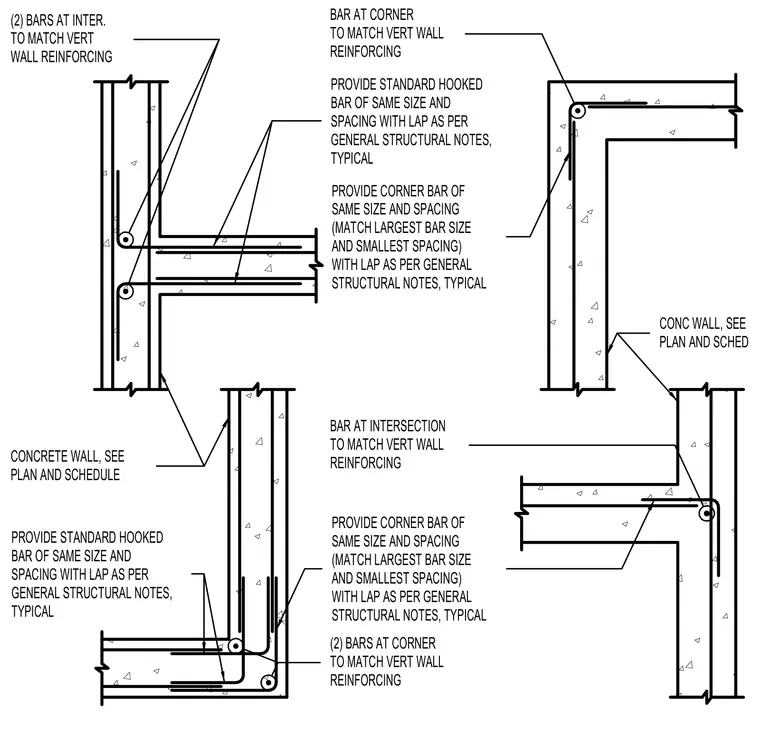

Standard reinforcing bar layouts are detailed at concrete wall corners and intersections in plan view. Two reinforcing bars are placed at the corner, matching the vertical wall reinforcement size. A specialized corner bar matches the largest bar size and smallest spacing, complete with laps per general structural notes. Intersection configurations incorporate two bars matching the vertical wall reinforcement along with standard hooked bars of the same size and spacing.
