Buckling-Restrained Brace Connection at Base Plate

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage HSS Connection

About this detail

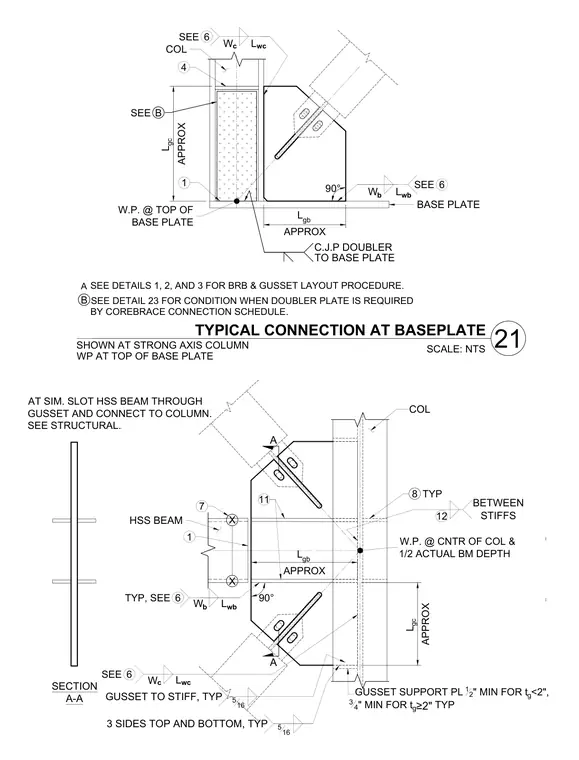

A buckling-restrained brace connects to an HSS column base plate assembly via a gusset plate welded to stiffeners with five-sixteenths inch fillet welds on three sides, top and bottom typical. The HSS beam is slotted through the gusset and connected to the column per structural drawings. A complete joint penetration doubler plate is provided at the base plate where required by the corebrace connection schedule. Gusset support plates are specified as one-half inch minimum for gusset thickness under two inches, and three-quarters inch minimum for thickness equal to or greater than two inches.
