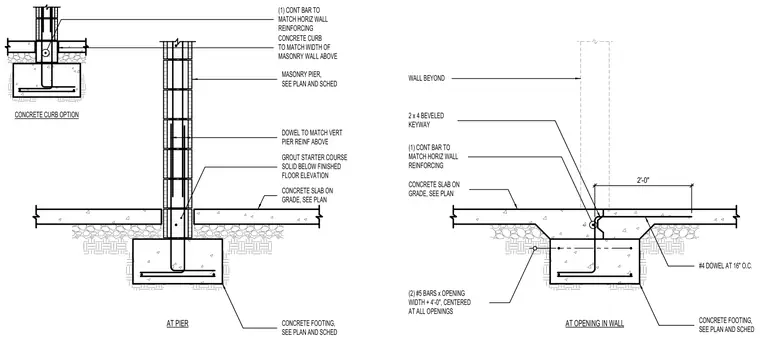

A concrete footing supports a masonry pier or wall section with dowels matching the vertical pier reinforcement above. A grout starter course sits below the finished floor elevation alongside a concrete slab on grade sized per plan. Continuous horizontal reinforcing bars match the wall reinforcement requirements. An opening detail incorporates a two-by-four beveled keyway and two number five bars extending the opening width plus four feet, centered at all openings with number four dowels at sixteen inches on center.
CONCRETE CURB OPTION DOWEL TO MATCH VERT PIER REINF ABOVE CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE CURB TO MATCH WIDTH OF MASONRY WALL ABOVE GROUT STARTER COURSE SOLID BELOW FINISHED FLOOR ELEVATION (1) CONT BAR TO MATCH HORIZ WALL REINFORCING CONCRETE FOOTING, SEE PLAN AND SCHED MASONRY PIER, SEE PLAN AND SCHED CONCRETE SLAB ON GRADE, SEE PLAN WALL BEYOND 2 x 4 BEVELED KEYWAY (2) #5 BARS x OPENING WIDTH + 4'-0", CENTERED AT ALL OPENINGS (1) CONT BAR TO MATCH HORIZ WALL REINFORCING CONCRETE FOOTING, SEE PLAN AND SCHED #4 DOWEL AT 16" O.C. AT PIER AT OPENING IN WALL 2'-0"
