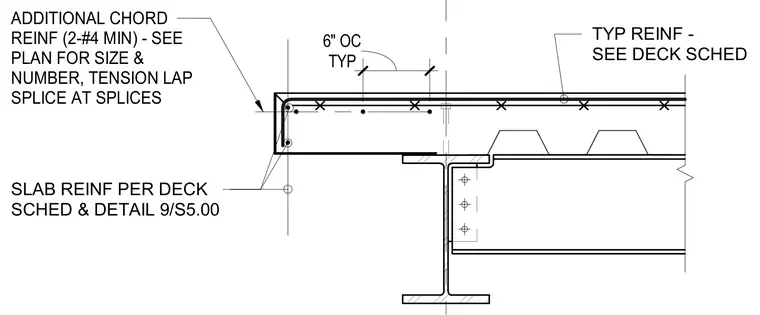

A concrete slab on metal deck bears on a structural steel beam with slab reinforcement configured per the deck schedule and detail 9/S5.00. Additional chord reinforcement consisting of a minimum of two number four bars hooks down at the slab edge with a tension lap splice at splices. Typical reinforcement is spaced at six inches on center.
SLAB REINF PER DECK SCHED & DETAIL 9/S5.00 ADDITIONAL CHORD REINF (2-#4 MIN) - SEE PLAN FOR SIZE & NUMBER, TENSION LAP SPLICE AT SPLICES TYP 6" OC TYP REINF - SEE DECK SCHED
