Tilt-Up Concrete Panel Lintel and Jamb Reinforcement Detail

Elements

Beams Walls Foundations / Footings Arches Roof / Floor Openings

About this detail

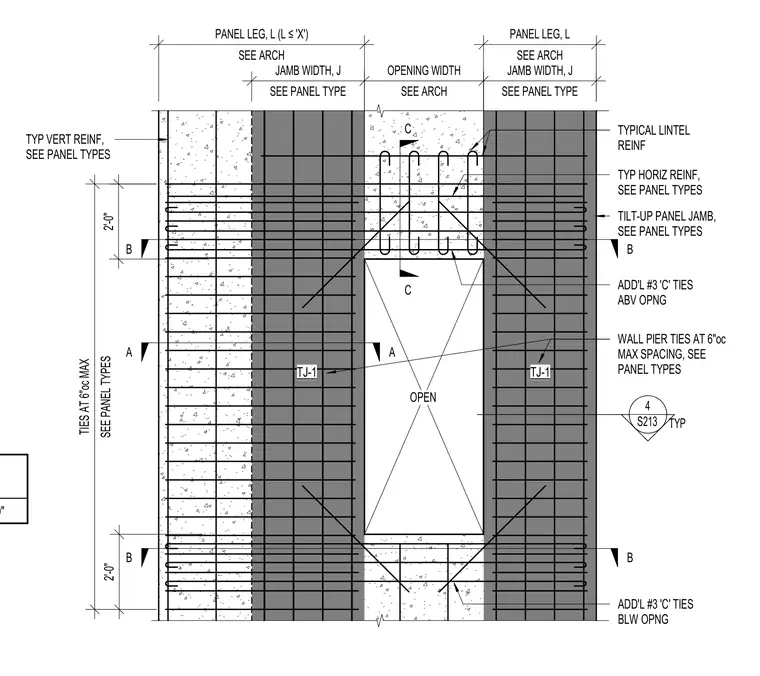

Tilt-up concrete wall panel opening reinforced with typical vertical and horizontal bars per panel schedules. Additional number three 'C' ties extend two feet above and below the opening with maximum six-inch spacing along the wall piers. Lintel reinforcement spans the top of the opening with hooked ties tying into the surrounding jamb and pier assemblies.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
