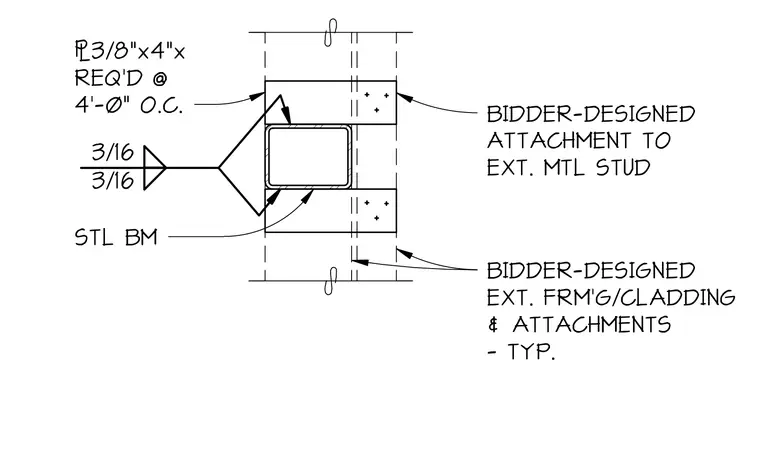

A steel beam supports exterior metal framing and cladding through a bidder-designed attachment spaced at four feet on center. A three-eighths-inch by four-inch plate connects to the steel beam with three-sixteenths-inch fillet welds. The exterior framing and cladding assembly is delegated to the bidder.
3/8"x4"x REQ'D @ 4'-0" O.C. STL BM BIDDER-DESIGNED ATTACHMENT TO EXT. MTL STUD BIDDER-DESIGNED EXT. FRM'G/CLADDING & ATTACHMENTS - TYP. 3/16 3/16
