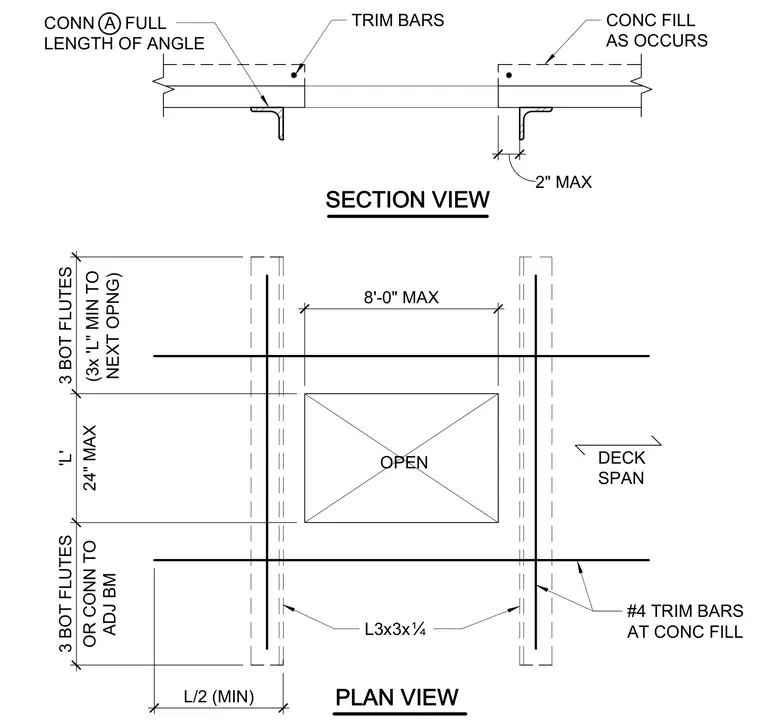

An L3x3x1/4 angle spans the opening and connects to the bottom flutes of the metal deck, extending a full length of angle or with a minimum length of three bottom flutes toward the next opening or adjacent beam. Number 4 trim bars are placed within the concrete fill around the perimeter of the opening. The concrete fill occurs as shown with a maximum two-inch trim width, and deck spans are detailed with an eight-foot maximum dimension.
OPEN 2" MAX TRIM BARS CONC FILL AS OCCURS PLAN VIEW SECTION VIEW L3x3xË #4 TRIM BARS AT CONC FILL OR CONN TO 3 BOT FLUTES 24" MAX 'L' 3 BOT FLUTES (3x 'L" MIN TO NEXT OPNG) L/2 (MIN) DECK SPAN 8'-0" MAX ADJ BM CONN A FULL LENGTH OF ANGLE
