Structural · S-MTGZM

Typical Deck Bearing Angles at Steel Column

Materials

Steel

Elements

Columns Beams Decks Bracing

Connections

Bracing Connection

About this detail

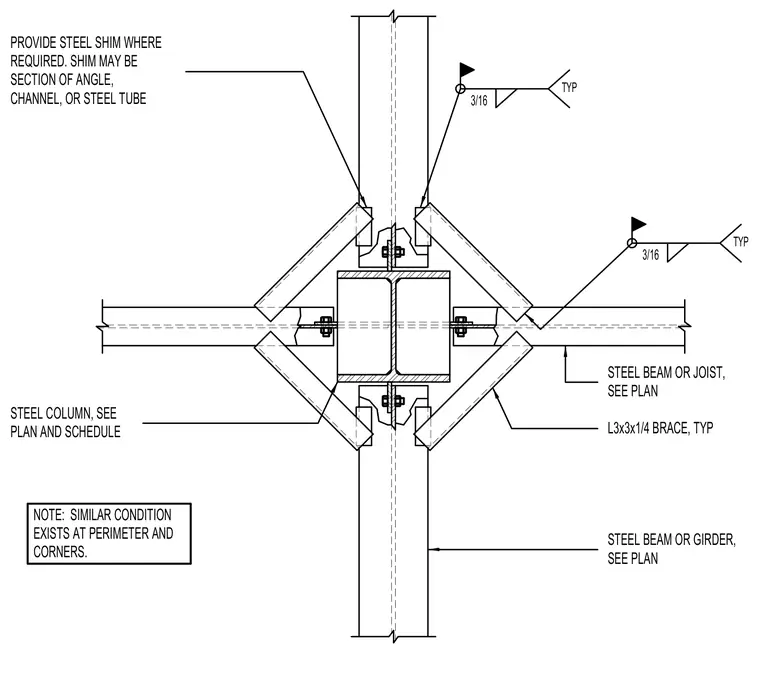

Typical deck bearing angles and lateral braces frame into a steel column. An L3x3x1/4 angle brace connects to the steel beam or joist sized per plan, with three-sixteenths-inch typical fillet welds. Steel shims, which may consist of a section of angle, channel, or steel tube, are provided where required at bearing conditions. Similar conditions exist at the building perimeter and corners.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
