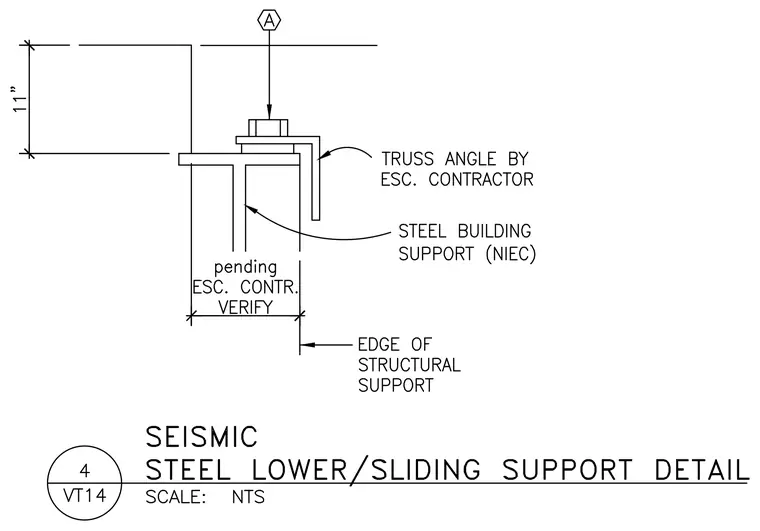

A seismic steel lower sliding support connection mounts to a structural steel building support. A truss angle provided by the escalator contractor attaches to the steel support via a mechanical fastener assembly. An eleven-inch vertical dimension dictates the clearance to the overhead structure. Field verification is required for the support dimensions provided by the escalator contractor.
