Structural · S-MSXRK

Clip Corners Of Pl Girder

Elements

Connections

About this detail

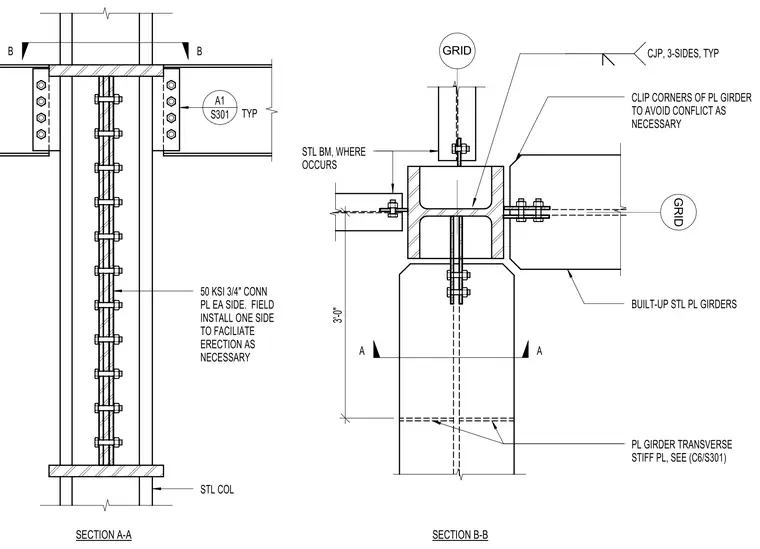

This structural detail shows a built-up steel plate girder framing into a steel column with fifty kilips per square inch three-quarter-inch connection plates on each side. One side is field installed to facilitate erection as necessary. The plate girder features transverse stiffener plates detailed on sheet C6 over S301, with clipped corners to avoid geometric conflicts. Complete joint penetration welds are specified on three sides typically, while steel beams frame in where indicated.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
