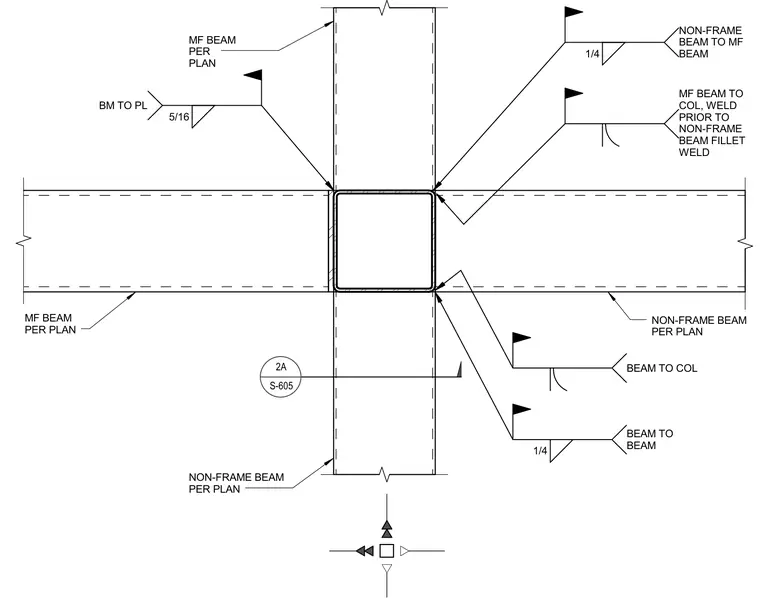

A moment frame beam connects to a central column with a five-sixteenth-inch beam-to-plate weld, while the moment frame beam to column connection is completed prior to the non-frame beam fillet weld. Non-frame beams frame into the moment frame beam with a one-quarter-inch fillet weld. The assembly integrates moment frame and non-frame structural steel elements as sized per plan.
MF BEAM PER PLAN 5/16 BM TO PL 1/4 BEAM TO BEAM BEAM TO COL NON-FRAME BEAM PER PLAN NON-FRAME BEAM PER PLAN MF BEAM PER PLAN MF BEAM TO COL, WELD PRIOR TO NON-FRAME BEAM FILLET WELD 1/4 NON-FRAME BEAM TO MF BEAM 2A S-605
