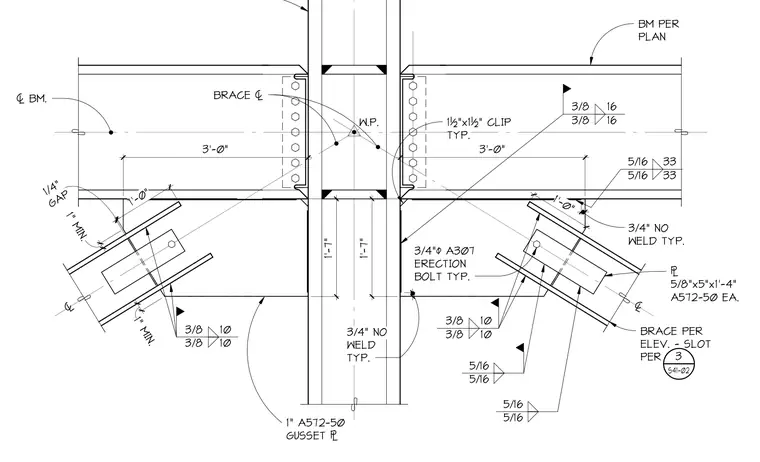

This structural steel connection features a one-inch A572-50 gusset plate welded to a vertical steel column and supporting diagonal brace members. The braces are sized per elevation with a slotted five-eighths-inch by five-inch by one-foot-four-inch A572-50 plate on each side, secured with three-quarter-inch diameter A307 typical erection bolts. Framing beams connect to the column web with typical one-and-a-half-inch by one-and-a-half-inch clips. Fillet welds of five-sixteenth-inch and three-eighths-inch sizes are specified throughout the connection assembly, with designated no-weld zones and a one-inch minimum gap.
2 W.P. 3'-0" 1'-7" 1'-0" 3/4 " 3/4" NO WELD TYP. 5/16 33 5/16 33 1½"x1½" CLIP TYP. 3/8 16 3/8 16 3/4" A307 ERECTION BOLT TYP. 3/8 10 3/8 10 BRACE PER ELEV. - SLOT PER 5/8"x5"x1'-4" A572-50 EA. 3/4" NO WELD TYP. 1" A572-50 GUSSET 3 S41-02 3/4 " 2 3'-0" 1'-7" 3/8 10 3/8 10 1'-0" 1" MIN. 1" MIN. GAP 1/4" BRACE 2 BM PER PLAN 2 BM. 5/16 5/16 5/16 5/16
