Opening in Slab on Metal Deck

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Floors / Slabs Decks Connections / Plates Roof / Floor Openings

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

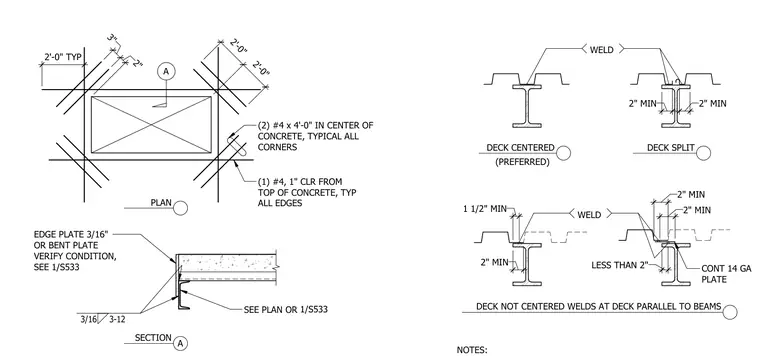

Framing and reinforcing for floor openings in a concrete slab on metal deck. The concrete perimeter is reinforced with two number four bars at four feet zero inches in length placed in the center of the concrete at all four corners, alongside one number four bar with one inch clearance from the top of concrete typical at all edges. Edge conditions feature a three-sixteenth inch edge plate or bent plate welded with a three-sixteenth inch fillet weld at twelve inches on center, sized per plan or detail one on sheet S533. Additional conditions include deck alignment configurations such as centered deck, split deck, and uncentered deck welds running parallel to steel beams with continuous fourteen gauge plates and required minimum clearances.
