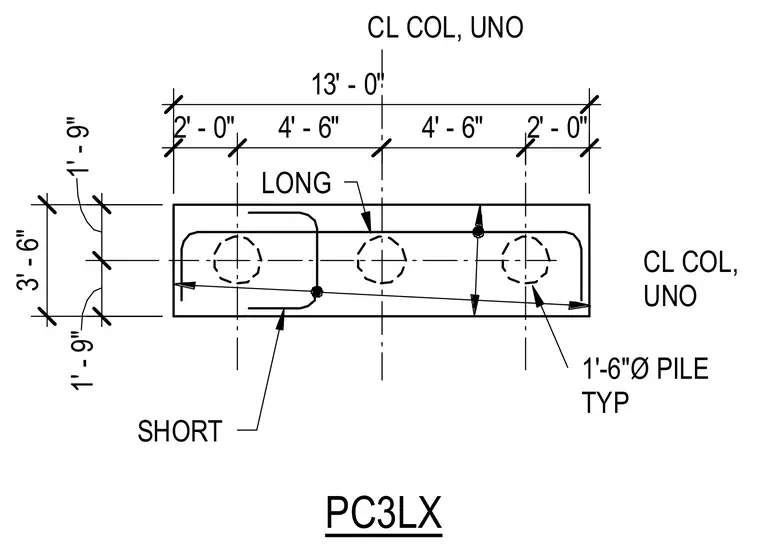

A rectangular concrete pile cap measuring thirteen feet by three feet six inches is supported by three eighteen-inch diameter piles spaced four feet six inches on center. The cap is reinforced with long and short reinforcing bars bent at the ends. Column centerline dimensions are provided for alignment.
PC3LX CL COL, UNO CL COL, UNO 13' - 0" 2' - 0" 4' - 6" 4' - 6" 2' - 0" 1' - 9" 1' - 9" 3' - 6" 1'-6"Ø PILE TYP LONG SHORT
