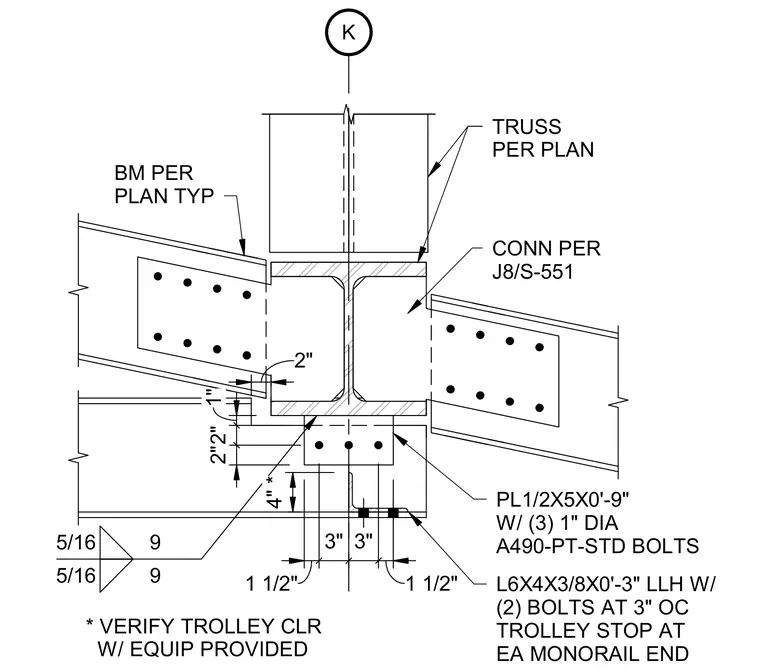

A trolley stop at each monorail end consists of an L6x4x3/8 by 0'-3" long leg horizontal angle secured with two bolts at 3 inches on center and welded with five-sixteenths fillet welds. A 1/2-inch thick by 5-inch wide by 0'-9" long plate connects with three 1-inch diameter A490-PT-STD bolts. The truss is positioned per plan with beam connections per plan, maintaining a verified trolley clearance with provided equipment.
K 1 1/2" 3" 3" 1 1/2" PL1/2X5X0'-9" W/ (3) 1" DIA A490-PT-STD BOLTS 5/16 9 5/16 9 L6X4X3/8X0'-3" LLH W/ (2) BOLTS AT 3" OC TROLLEY STOP AT EA MONORAIL END TRUSS PER PLAN CONN PER J J8/S-551 BM PER PLAN TYP 2"2" 1" 4" * * VERIFY TROLLEY CLR W/ EQUIP PROVIDED 2"
