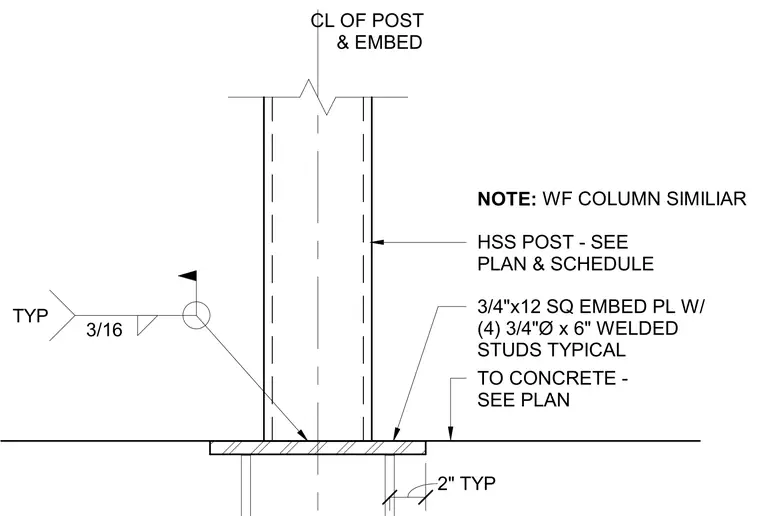

An HSS post connects to a three-quarter-inch by twelve-inch square steel embed plate anchored into concrete. The embed plate features four three-quarter-inch diameter by six-inch welded studs typical. A three-sixteenths-inch fillet weld secures the HSS post to the embed plate around its perimeter. A note indicates that wide flange column details are similar.
2" TYP 3/4"x12 SQ EMBED PL W/ (4) 3/4"Ø x 6" WELDED STUDS TYPICAL HSS POST - SEE PLAN & SCHEDULE TO CONCRETE - SEE PLAN 3/16 TYP NOTE: WF COLUMN SIMILIAR CL OF POST & EMBED
