Structural · S-MS8BX

Built-Up Concrete Slab and Insulation at Loading Dock

Materials

Concrete Steel Timber / Wood

Elements

Floors / Slabs Decks Arches Waterproofing / Flashing Insulation Site / Paving

Connections

Welded Connection Deck Attachment

About this detail

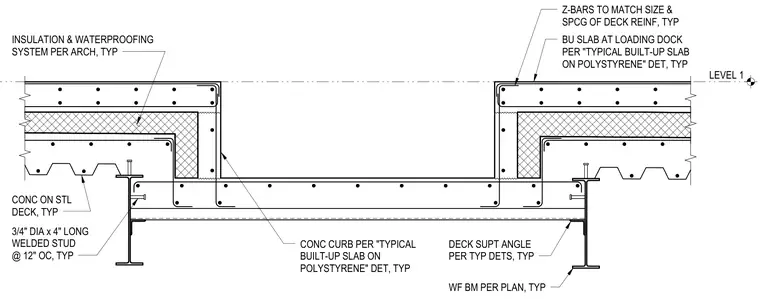

Concrete is placed on a steel deck supported by wide-flange beams sized per plan. Three-quarter-inch diameter by four-inch long welded studs are spaced at twelve inches on center to anchor the concrete to the steel beam. A built-up concrete slab and curb at the loading dock incorporate insulation and a waterproofing system per architectural specifications. Z-bars match the size and spacing of the deck reinforcement.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
