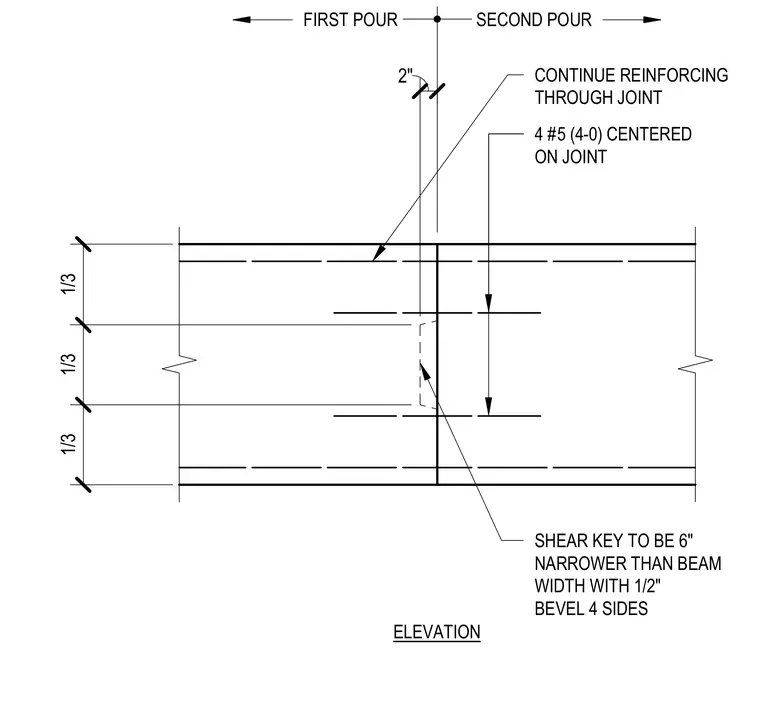

This elevation shows a concrete footing construction joint detailing the separation between a first pour and a second pour. Four number five bars extend continuously through the joint and are centered on it. A formed shear key is sized six inches narrower than the beam width with a half-inch bevel on all four sides. The joint maintains a two-inch spacing interval.
ELEVATION FIRST POUR SECOND POUR CONTINUE REINFORCING THROUGH JOINT 4 #5 (4-0) CENTERED ON JOINT SHEAR KEY TO BE 6" NARROWER THAN BEAM WIDTH WITH 1/2" BEVEL 4 SIDES 2" 1/3 1/3 1/3
