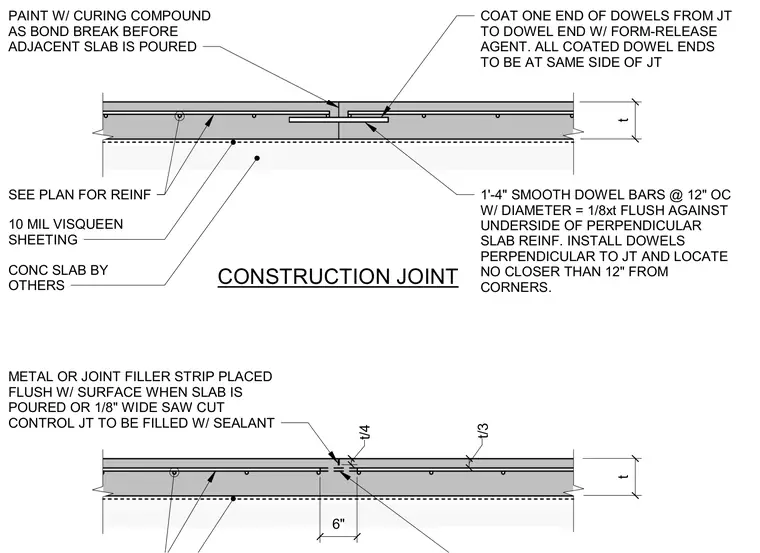

A concrete slab assembly features a construction joint detailed with smooth dowel bars spaced twelve inches on center, with one end coated with a form-release agent and all coated ends positioned on the same side of the joint. The joint is coated with a curing compound as a bond break before the adjacent slab is poured, and sits over ten-mil Visqueen sheeting with reinforcing sized per plan. A metal or joint filler strip is placed flush with the surface during the pour, or an eighth-inch wide saw-cut control joint is filled with sealant. Dowels are installed perpendicular to the joint and located no closer than twelve inches from corners.
PAINT W/ CURING COMPOUND AS BOND BREAK BEFORE ADJACENT SLAB IS POURED COAT ONE END OF DOWELS FROM JT TO DOWEL END W/ FORM-RELEASE AGENT. ALL COATED DOWEL ENDS TO BE AT SAME SIDE OF JT 1'-4" SMOOTH DOWEL BARS @ 12" OC W/ DIAMETER = 1/8xt FLUSH AGAINST UNDERSIDE OF PERPENDICULAR SLAB REINF. INSTALL DOWELS PERPENDICULAR TO JT AND LOCATE NO CLOSER THAN 12" FROM CORNERS. METAL OR JOINT FILLER STRIP PLACED FLUSH W/ SURFACE WHEN SLAB IS POURED OR 1/8" WIDE SAW CUT CONTROL JT TO BE FILLED W/ SEALANT SEE PLAN FOR REINF CONC SLAB BY OTHERS CONSTRUCTION JOINT t/4 6" t/3 10 MIL VISQUEEN SHEETING t t
