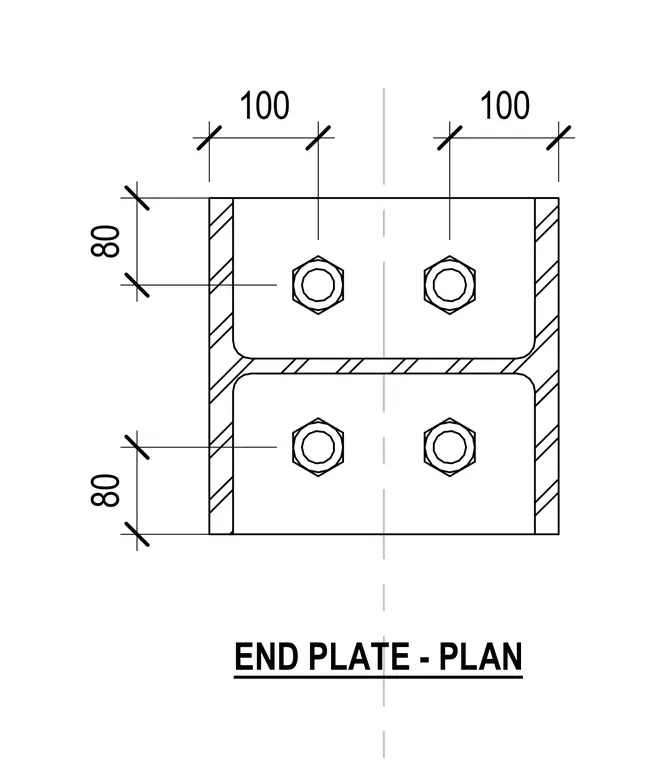

An end plate connection is detailed in plan view with symmetrical bolt patterns centered on a structural steel member. The four bolts are spaced at eighty millimeters vertically and one hundred millimeters horizontally from the center line. The connection transfers loads through the welded end plate flange assembly.
