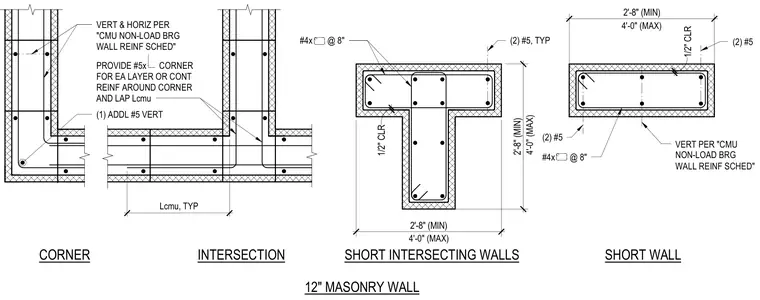

Corner intersections and short walls for a twelve-inch concrete masonry unit assembly. Vertical and horizontal reinforcing bars are installed per the masonry non-load-bearing wall reinforcement schedule, with specific lap lengths and continuous reinforcing around corners. Additional vertical number five bars are placed at corners and intersecting walls, maintaining standard clearances and spacing requirements.
CORNER INTERSECTION SHORT INTERSECTING WALLS SHORT WALL VERT & HORIZ PER "CMU NON-LOAD BRG WALL REINF SCHED" 2'-8" (MIN) 2'-8" (MIN) 2'-8" (MIN) 12" MASONRY WALL 22 5/8" Lcmu, TYP (1) ADDL #5 VERT (2) #5, TYP #4x @ 8" (2) #5 (2) #5 VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" #4x @ 8" 4'-0" (MAX) 1/2" CLR 4'-0" (MAX) 4'-0" (MAX) 1/2" CLR PROVIDE #5x CORNER FOR EA LAYER OR CONT REINF AROUND CORNER AND LAP Lcmu
