A structural steel column or tube member is anchored above a concrete slab over a metal deck. The assembly utilizes 7/8-inch diameter A325N bolts typically spaced with 1-1/2-inch clearances. A continuous bent plate interfaces with the wide flange beam referenced from the plan. Fillet welds of 5/16-inch size are specified on three sides of the connection.

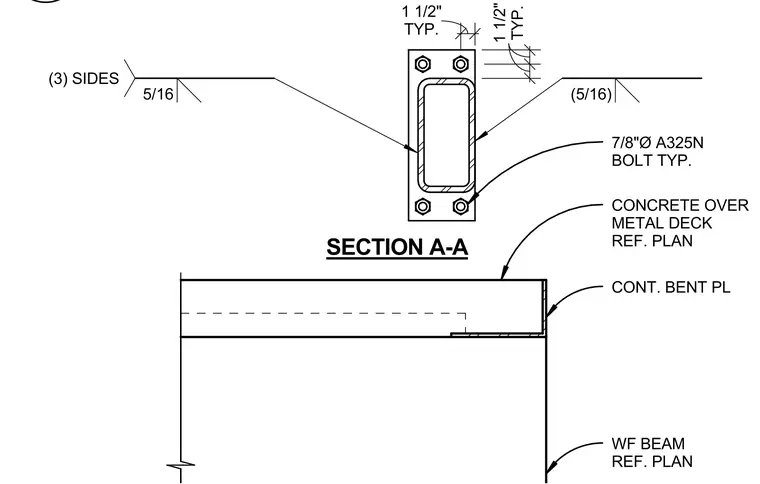

1 1/2" TYP. 1 1/2" TYP. 1 1/2" TYP. 7/8"Ø A325N BOLT TYP. CONCRETE OVER METAL DECK REF. PLAN (5/16) 5/16 (3) SIDES CONT. BENT PL WF BEAM REF. PLAN SECTION A-A
