Structural · S-MRHDT

Handrail Vertical Connection at Slab Edge and HSS Beam

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Railings / Guards Floors / Slabs Decks Arches Anchors / Embeds Connections / Plates Reinforcing

Connections

HSS Connection Welded Connection Rebar Splice / Development Deck Attachment

About this detail

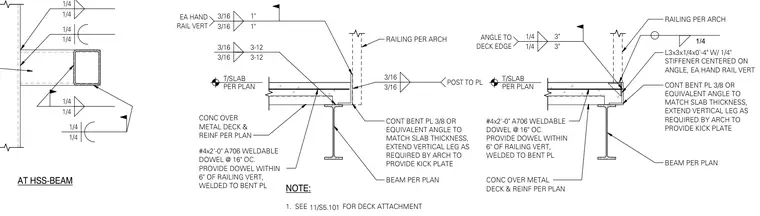

A handrail vertical post attaches to a concrete slab edge and steel floor framing. A continuous three-eighths-inch bent plate matches the slab thickness and extends its vertical leg upward to function as a kick plate. Number four by two-foot ASTM A706 weldable dowels spaced at sixteen inches on center anchor into the concrete over metal deck and reinforce the slab edge, with a dowel positioned within six inches of each handrail vertical and welded to the bent plate. L3x3x1/4x0'-4" angles with one-quarter-inch stiffeners connect the deck edge to the handrail verticals, utilizing three-sixteenths-inch and one-quarter-inch fillet welds as specified. The supporting beam is sized per plan, and deck attachments refer to sheet S5.101.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
