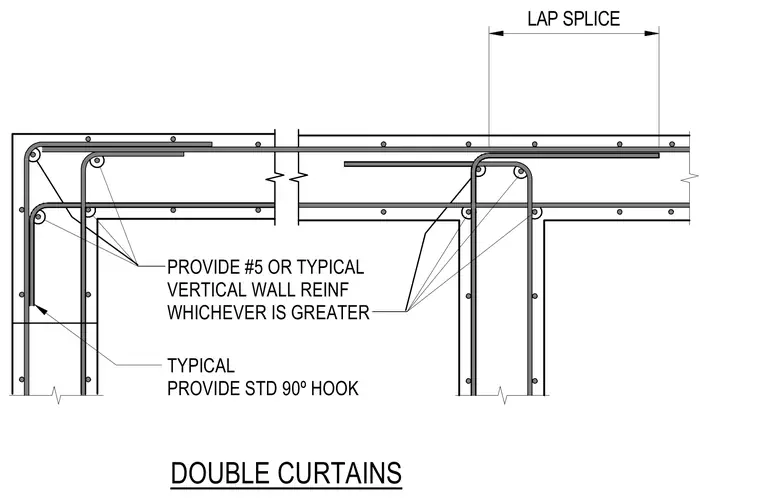

Concrete walls feature double curtains of vertical and horizontal reinforcing steel with standard ninety-degree hooks at the corners. Number five bars or typical vertical wall reinforcing, whichever is greater, are provided at corners and intersections. Lapped splices continue the reinforcing bars across wall segments.
TYPICAL PROVIDE STD 90º HOOK PROVIDE #5 OR TYPICAL VERTICAL WALL REINF WHICHEVER IS GREATER DOUBLE CURTAINS LAP SPLICE
