Steel Joist Girder Drag Connection at Tilt-Up Panel

Materials

Reinforced Concrete Steel Timber / Wood

Elements

Beams Anchors / Embeds Connections / Plates Reinforcing

Connections

Gusset Plate Welded Connection Shear Stud / Composite Embed Plate Timber / Mass-Timber Connection

About this detail

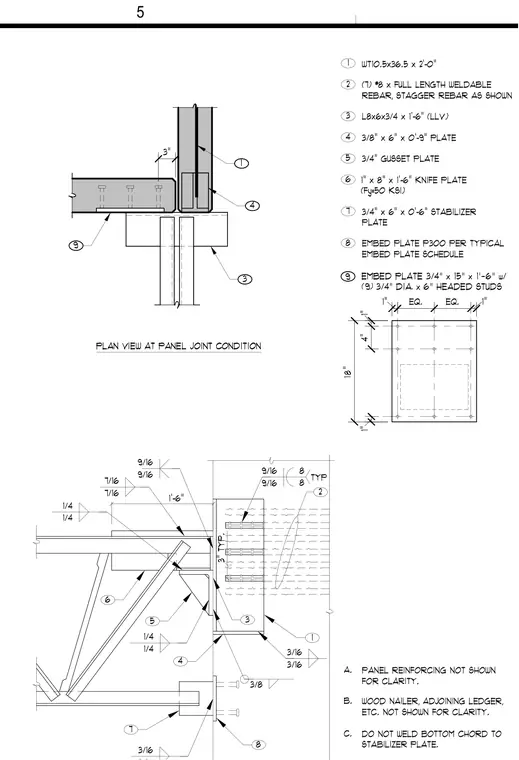

A WT10.5x36.5 structural tee with a Fy=50 KSI rating frames into a reinforced concrete tilt-up panel utilizing an L8x6x3/4 by 1'-6" long angle bracket. A 1" thick by 8" wide and 1'-6" long knife plate welded with 9/16" fillet welds ties into the assembly alongside a 3/4" thick gusset plate and a 3/8" x 6" x 0'-9" plate. A stabilizer plate measuring 3/4" x 6" x 0'-6" is positioned below, left unwelded to the bottom chord per drawing notes. The connection ties into an embed plate measuring 3/4" x 15" x 1'-6" equipped with nine 3/4" diameter by 6" long headed studs, with seven #8 full-length weldable rebar staggered as shown. Fillet welds of 1/4", 3/16", 7/16", and 9/16" are applied at specified member junctions.
