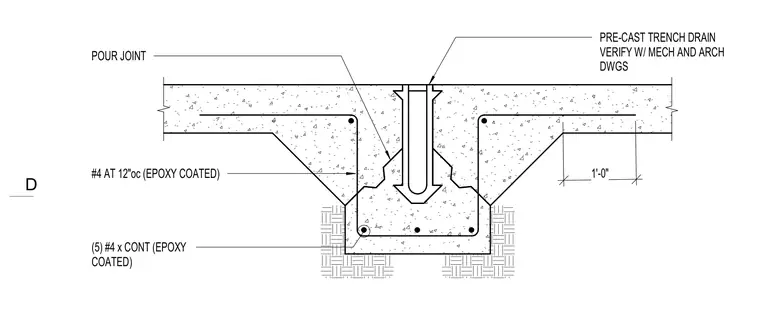

A pre-cast trench drain is embedded within a concrete slab and thickened concrete haunch. A pour joint runs along the sloped interface of the trench edge. Reinforcement consists of number four epoxy-coated bars placed at twelve inches on center, supplemented by five continuous number four epoxy-coated bars running longitudinally at the base of the haunch. The placement coordinates with mechanical and architectural drawings.
PRE-CAST TRENCH DRAIN VERIFY W/ MECH AND ARCH DWGS POUR JOINT #4 AT 12"oc (EPOXY COATED) (5) #4 x CONT (EPOXY COATED) 1'-0" D
