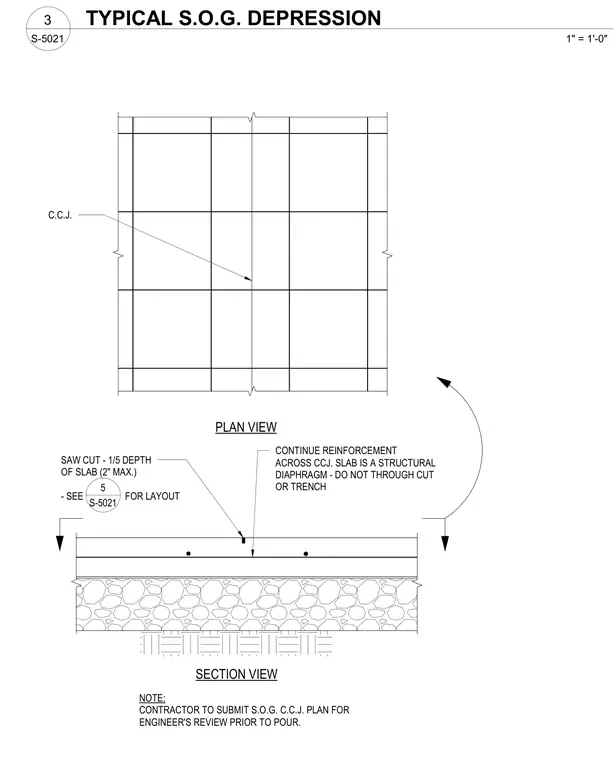

A slab-on-grade control joint detail features a saw cut extending to one-fifth the depth of the slab up to a two-inch maximum. Reinforcing steel continues uninterrupted across the control joint. Because the slab functions as a structural diaphragm, through-cutting or trenching the control joint is strictly prohibited. The contractor must submit a slab-on-grade control joint layout plan for the engineer's review prior to pouring concrete.
SAW CUT - 1/5 DEPTH OF SLAB (2" MAX.) - SEE FOR LAYOUT CONTINUE REINFORCEMENT ACROSS CCJ. SLAB IS A STRUCTURAL DIAPHRAGM - DO NOT THROUGH CUT OR TRENCH C.C.J. SECTION VIEW PLAN VIEW NOTE: CONTRACTOR TO SUBMIT S.O.G. C.C.J. PLAN FOR ENGINEER'S REVIEW PRIOR TO POUR. 5 S-5021 S-5021 1" = 1'-0" 3 TYPICAL S.O.G. DEPRESSION
