A seven-eighths-inch thick knife plate connects the structural steel beams to the hollow structural section column using fourteen one-and-one-eighth-inch diameter A325N bolts on each side of the column. The bolts are specified as pretensioned with a Class A faying surface. A joist girder seat bears atop the column below the metal deck assembly. Fillet welds of nine-sixteenths-inch size tie the connection components together according to standard typical dimensions.

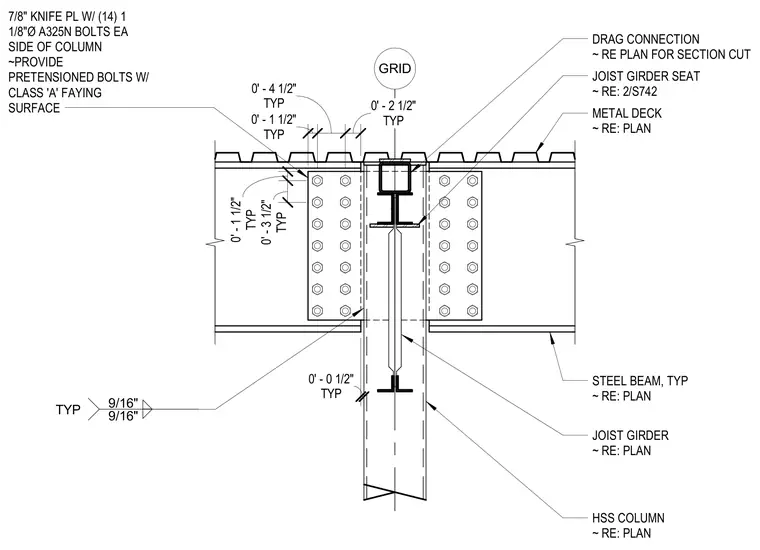

GRID STEEL BEAM, TYP ~ RE: PLAN HSS COLUMN ~ RE: PLAN METAL DECK ~ RE: PLAN JOIST GIRDER ~ RE: PLAN 7/8" KNIFE PL W/ (14) 1 1/8"Ø A325N BOLTS EA SIDE OF COLUMN ~PROVIDE PRETENSIONED BOLTS W/ CLASS 'A' FAYING SURFACE 9/16" 9/16" TYP TYP 0' - 0 1/2" TYP 0' - 1 1/2" TYP 0' - 4 1/2" TYP 0' - 2 1/2" TYP 0' - 1 1/2" TYP 0' - 3 1/2" DRAG CONNECTION ~ RE PLAN FOR SECTION CUT JOIST GIRDER SEAT ~ RE: 2/S742
