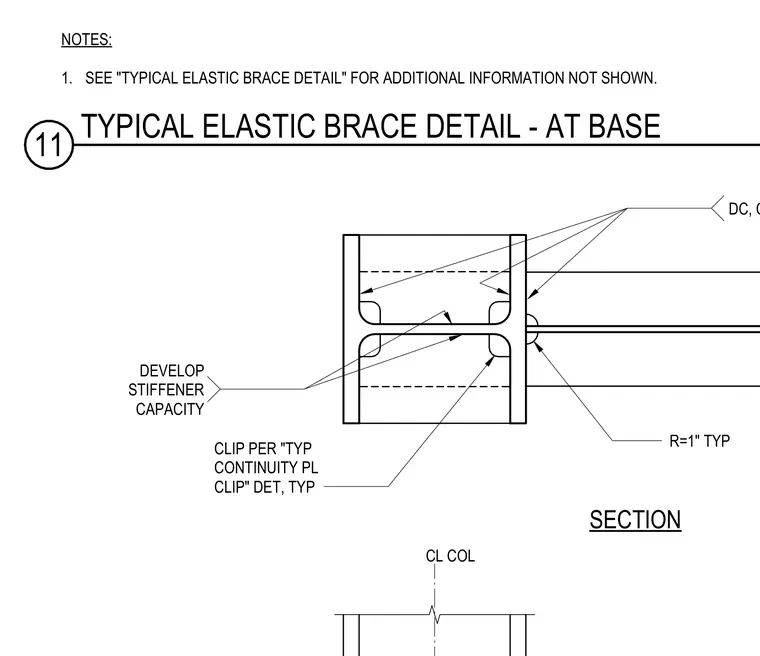

An elastic brace connection at a column base features a wide flange column with stiffener plates designed to develop full stiffener capacity. The assembly includes complete joint penetration welds and typical one-inch corner clips per the typical continuity plate clip detail. Additional information is referenced to the primary typical elastic brace detail.
CL COL SECTION CLIP PER "TYP CONTINUITY PL CLIP" DET, TYP R=1" TYP DC, CJP, TYP DEVELOP STIFFENER CAPACITY NOTES: 1. SEE "TYPICAL ELASTIC BRACE DETAIL" FOR ADDITIONAL INFORMATION NOT SHOWN. 11 TYPICAL ELASTIC BRACE DETAIL - AT BASE
