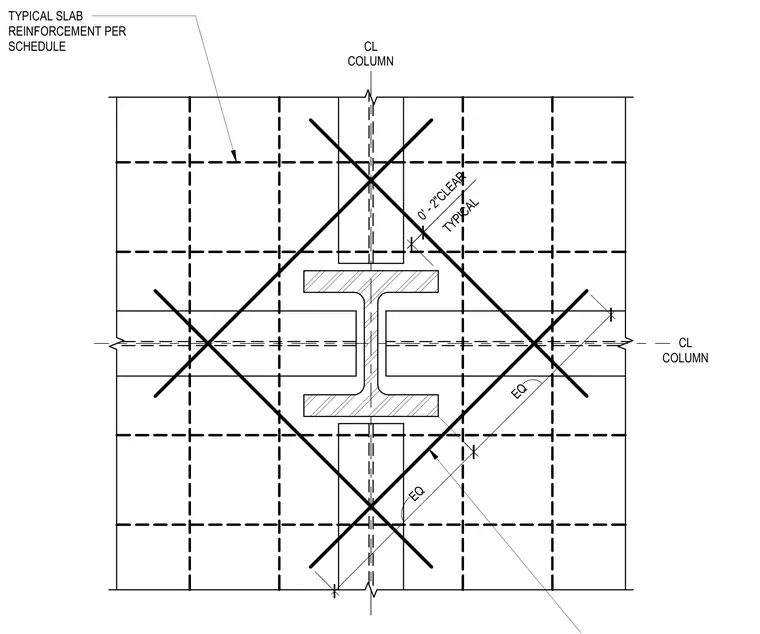

This detail outlines the typical slab reinforcement layout centered over an interior steel column. The grid of reinforcing bars follows the structural schedule with equal spacings established across column center lines. A typical two-inch clear dimension is maintained around the column flange and web intersection. Diagonal reinforcement bars frame out the column opening symmetrically on all four sides.
CL COLUMN CL COLUMN TYPICAL 0' - 2"CLEAR TYPICAL SLAB REINFORCEMENT PER SCHEDULE EQ EQ
