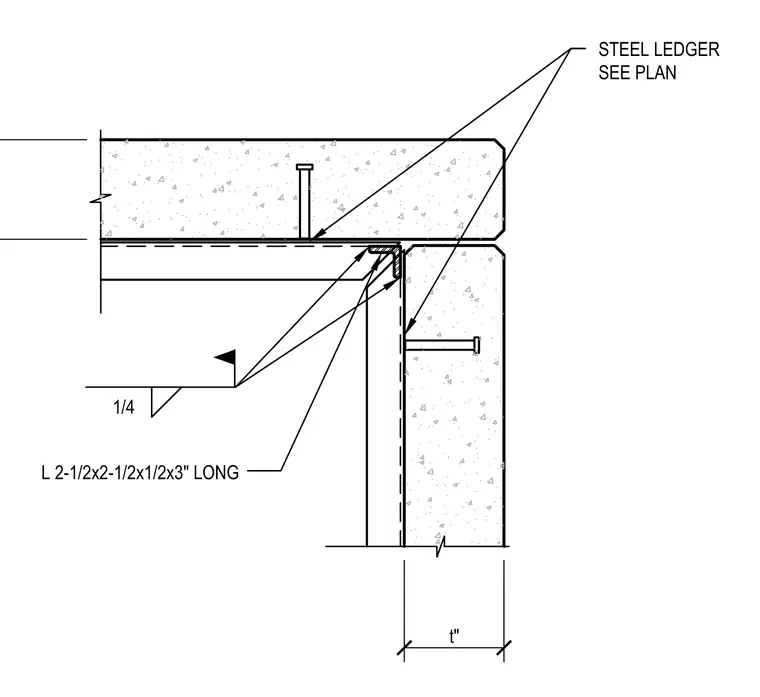

Precast concrete wall panels intersect at a corner with an embedded steel ledger sized per plan. The connection incorporates a 2-1/2 by 2-1/2 by 1/2-inch angle measuring 3 inches long. A one-quarter-inch fillet weld secures the steel angle assembly.
