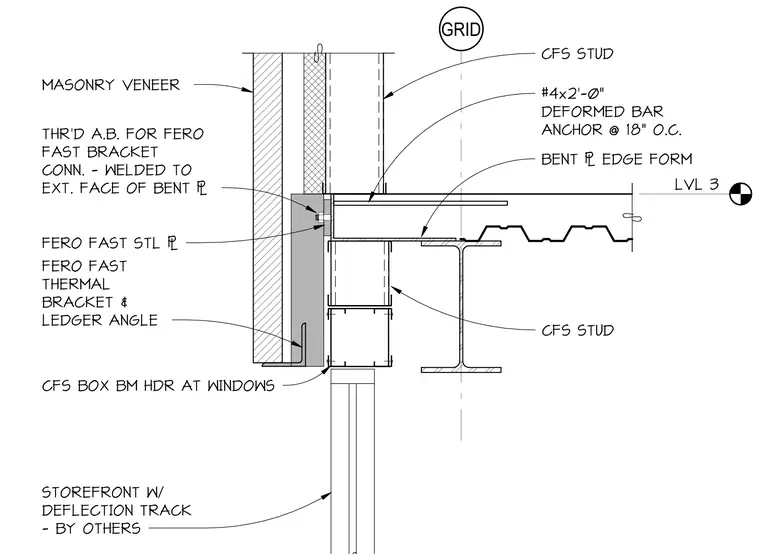

A bent steel plate edge form at Level 3 supports the concrete slab and ties back via number 4 deformed bar anchors spaced at 18 inches on center. A Fero Fast thermal bracket and ledger angle assembly mounts to the exterior face of the bent plate using a threaded anchor bolt welded directly to the steel. Cold-formed steel studs back up the exterior wall assembly, while a cold-formed steel box beam header frames the window head below. A storefront system featuring a deflection track is installed beneath the header by others.
LVL 3 BENT EDGE FORM #4x2'-0" DEFORMED BAR ANCHOR @ 18" O.C. FERO FAST THERMAL BRACKET & LEDGER ANGLE FERO FAST STL THR'D A.B. FOR FERO FAST BRACKET CONN. - WELDED TO EXT. FACE OF BENT MASONRY VENEER CFS STUD GRID STOREFRONT W/ DEFLECTION TRACK - BY OTHERS CFS BOX BM HDR AT WINDOWS CFS STUD
