Concrete on Metal Deck at Steel Beam and Curtain Wall Junction

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Beams Walls Windows Curtain Walls Facades / Cladding Decks Arches Bracing Insulation Connections / Plates

Connections

Bracing Connection

About this detail

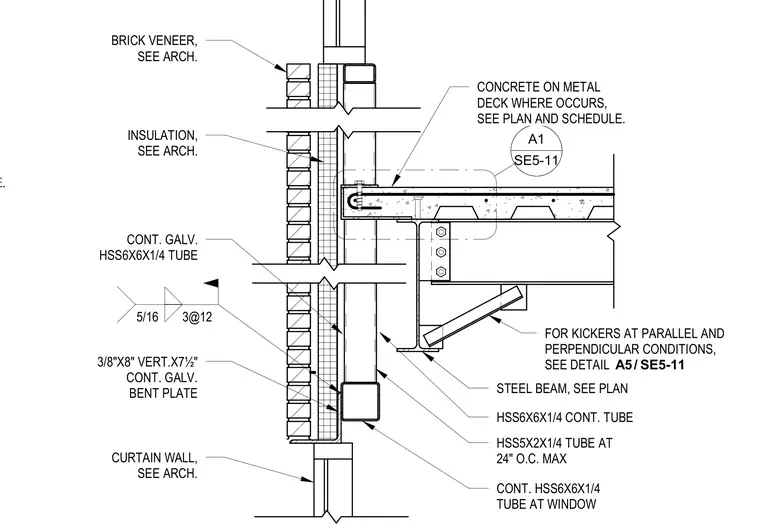

A concrete on metal deck floor assembly bears on a structural steel beam with an attached diagonal kicker connected via detail A5/SE5-11. The exterior facade features a continuous galvanized hollow structural section tube, HSS6x6x1/4, and vertical HSS5x2x1/4 tubes spaced at twenty-four inches on center maximum. A continuous galvanized bent plate, measuring three-eighths by eight inches and seven and one-half inches vertically, ties the curtain wall framing back to the structure with a five-sixteenths fillet weld spaced at three inches on center. Brick veneer and insulation are provided per architectural drawings.
