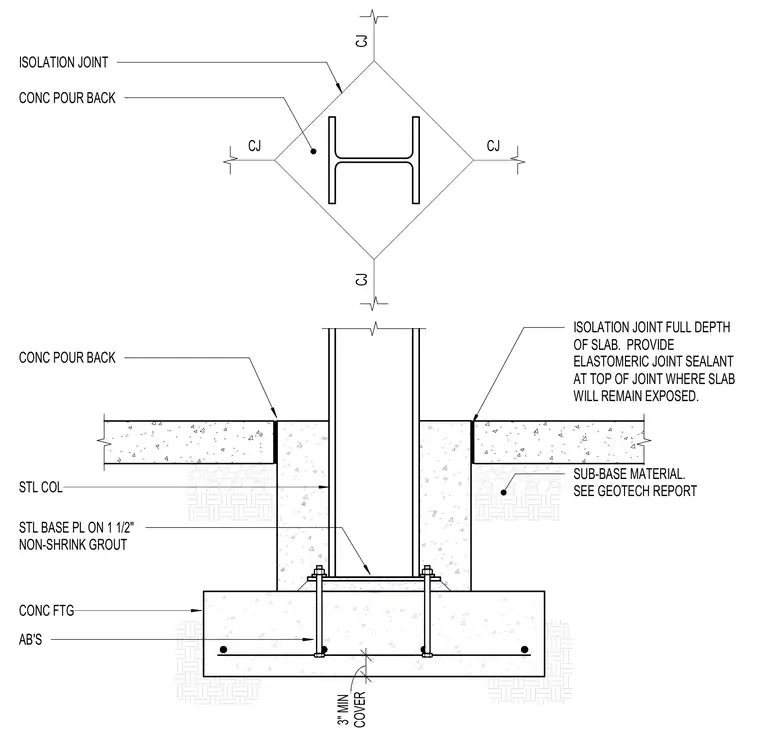

A steel column sits on a steel base plate anchored to a concrete footing with anchor bolts, with the base plate set on one and one-half inches of non-shrink grout. The footing provides a three-inch minimum concrete cover over the reinforcement. A concrete pour back surrounds the column base, isolated from the surrounding slab by a full-depth isolation joint. An elastomeric joint sealant is provided at the top of the joint where the slab remains exposed, and sub-base material is placed beneath the slab per the geotechnical report.
CONC FTG STL COL COVER 3" MIN CJ CONC POUR BACK ISOLATION JOINT CJ CJ CJ CONC POUR BACK AB'S STL BASE PL ON 1 1/2" NON-SHRINK GROUT SUB-BASE MATERIAL. SEE GEOTECH REPORT ISOLATION JOINT FULL DEPTH OF SLAB. PROVIDE ELASTOMERIC JOINT SEALANT AT TOP OF JOINT WHERE SLAB WILL REMAIN EXPOSED.
